Metal Tile Plc Control Roof Panel Forming Machine Low Noise

  • 1
  • 2

Brand Name : CANGZHOU FMS

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Working Days

Packaging Details : 40' FLC

Product Name : Metal Roof Tile Forming Machine Low Noise Roof Panel Machine

Thickness : 0.3-0.8mm

Control system : PLC Control

Rollers : 45# Steel as Customer Require

Machine Weight : Automatic

Motor : 5.5kw

Roller Material : 45# Steel

Cutting Blade : Cr12 MOV

Contact Now

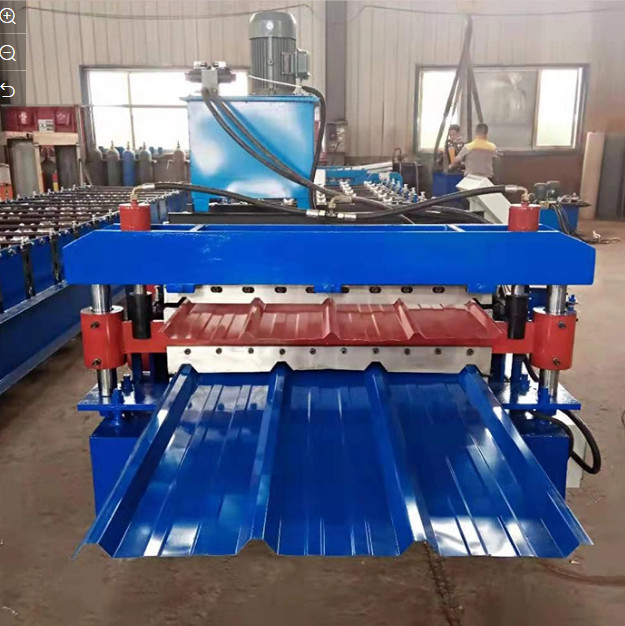

Metal Roof Tile Forming Machine Low Noise Roof Panel Machine



   Metal Roof Tile Forming Machine Low Noise Roof Panel Machine,The machine have alternating bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box. But the machine can't produce the 2 profiles at the same time.


Specification

Coil required Material PPGI GI AL
Width 914/925/1000/1200/1220/1250mm
Thickness 0.3-0.7mm , as custom order


Power required		 Power 380V 50Hz 3 Phase , as custom order
Main Motor 5.5KW Siemens Brand
Cutting Motor 4KW Siemens









Machine 		Support Frame 400 H Steel 10mm
Forming Station 14 rows as profile
Structure 18-20mm
Shaft 75mm
Roller 45# Steel with heat treatment
Chains 1.2 inch
Bearings Standard as custom order
Speed 15-30m/min
Electric Components Delta and Siemens
Size 7.5*1.3*1.6M
Weight 4T


Guarantee

   1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
