45# Forged Steel Cable Tray Roll Forming Machine High Productivity

Brand Name : FMS

Model Number : Cable Tray

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 20 sets per month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by plastic.

Product Name : China Factory Cable Tray Roll Forming Machine Cold Forming Machine Production Line

Production Capacity : 8-15 m/min

Profile height : 914-1450mm

Voltage : 380V 50Hz 3PH as per requested

Main Motor : 7.5 kw

Rolling thinckness : 0.8-2mm

Automation : Automatic

Roller material : 45# Forged Steel

Dimension(L*W*H) : 36*1.5*1.8m

Contact Now

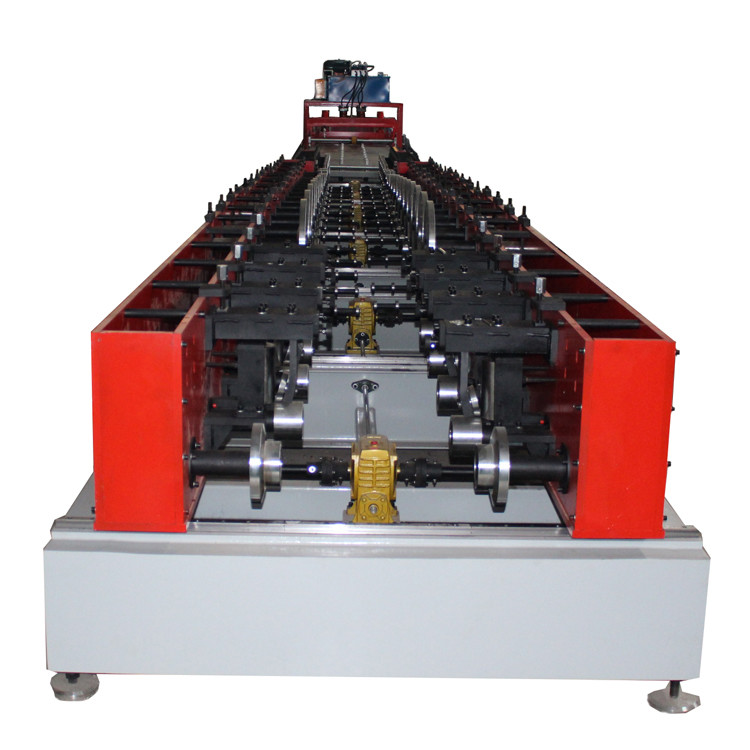

China Factory Cable Tray Roll Forming Machine Cold Forming Machine Production Line

China Factory Cable Tray Roll Forming Machine Cold Forming Machine Production Line adopt coil production material to form CT100-600 cable ladder Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Pre-Punching Machine, Main cable ladder roll forming part, Post hydraulic cutting, hydraulic station, PLC control system and Non-power type support table.The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.Working Speed: about 0-15 m/min ( excluding punching & cutting time);

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.

specifications

item	value
Applicable Industries	Hotels, Building Material Shops, Restaurant, Home Use
Production Capacity	8-15 m/min
Voltage	380v
Dimension(LWH)	361.51.8m
Weight	1500kg
Warranty	1 Year
Key Selling Points	High Productivity
Rolling thinckness	0.8-2mm
Feeding width	914-1450mm
Core Components	Motor, Other, Pump, PLC

Payment terms and Delivery

40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
