840mm Trapezoidal Panel Ibr Roof Roll Forming Machine

Brand Name : FMS

Certification : ISO CE

Place of Origin : CHINA MAINLAND

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Working Days

Packaging Details : 40' FLC

Product Name : 840 Trapezoidal Roof Panel Roll Forming Machine IBR

Raw Material : Galvalume, Galvanized, PPGI, Aluminum

Control systePLCm : PLC

Rolling thinckness : 0.3-0.8mm

Voltage : 380V 50HZ 3P or Customize as customer' request

Warranty of core components : 1 Year

Color : As per customer reqeust

Power : 4KW

Feeding width : 1220mm

Roller material : 45# steel with 0.05mm chrome

Contact Now

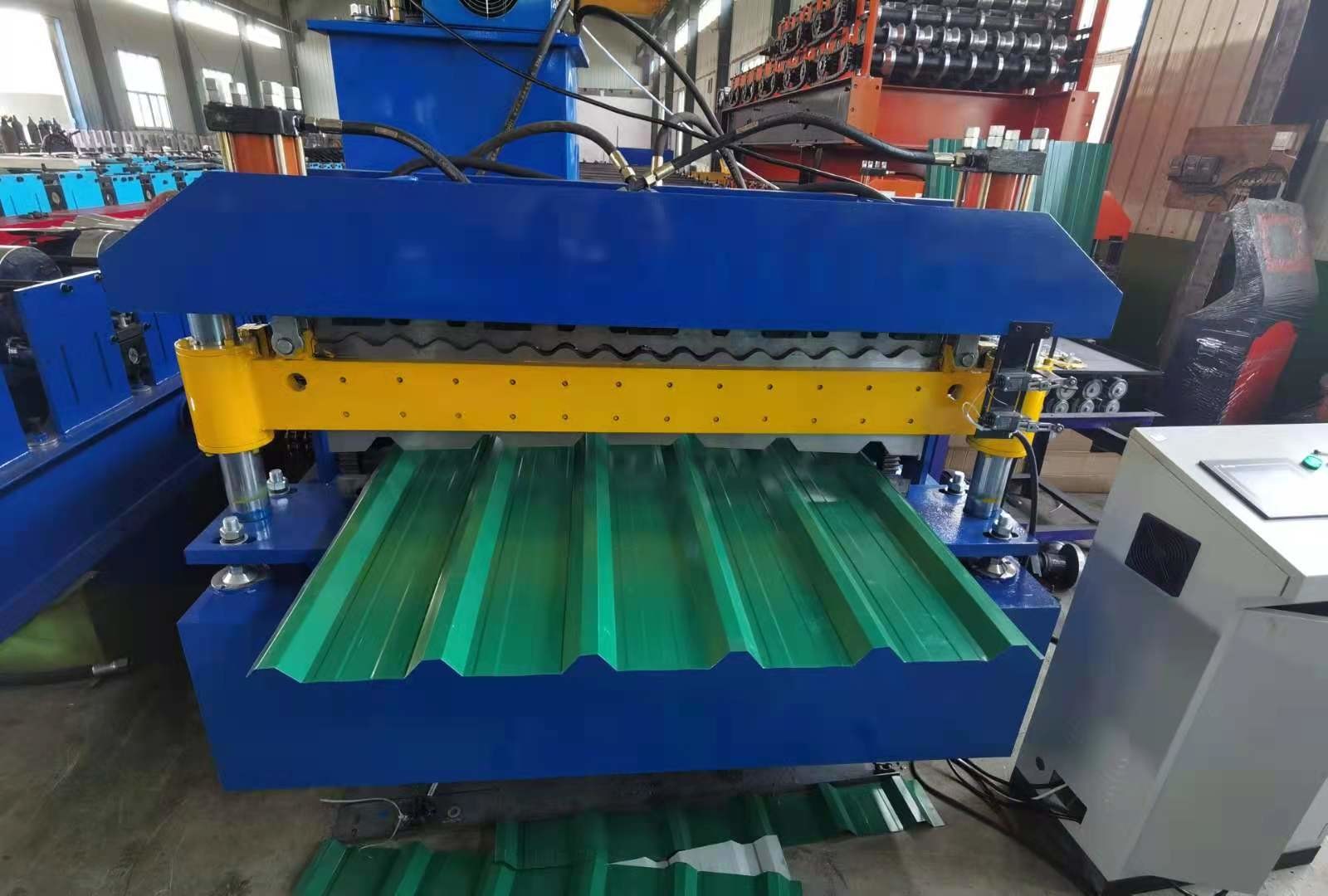

840 Trapezoidal Roof Panel Roll Forming Machine IBR

840 trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1000mm /1200mm / 1250mm. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Rolling thickness	0.3-0.8mm
3	Working Speed	8-20m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	About 61.51.3 m
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received
