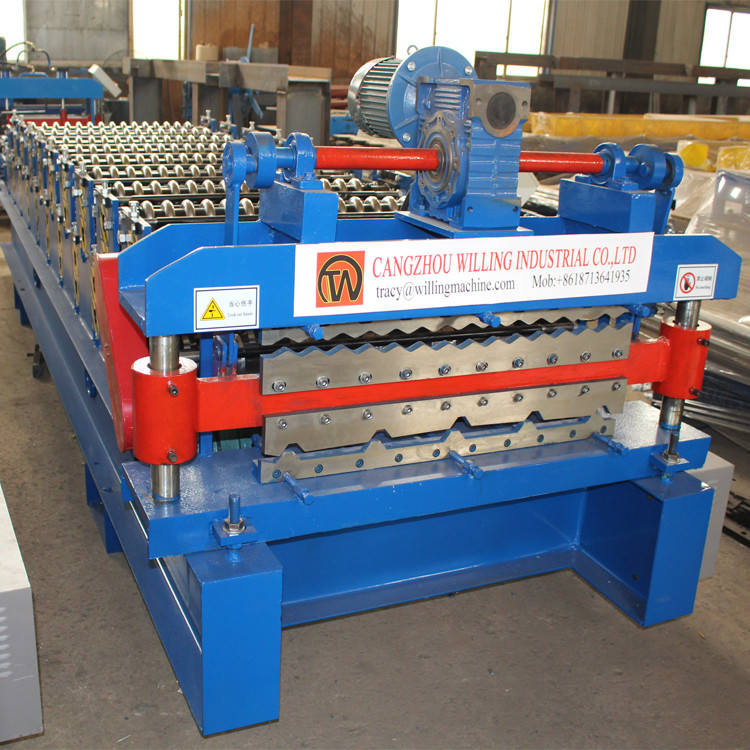

Double Layer Glazed Tile Forming Machine Plc Control
Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.
It is applicable to the industrial and civil buildings, warehouses, special buildings, large span steel structure of the roof, walls and interior and exterior decoration, with light, high strength, rich color, construction convenient and fast, seismic, fire, rain, long life, maintenance free and other characteristics, has been widely promoted and applied.
Equipment Detailed Parameters:
| 1 | Suitable Material | PPGI (235Mpa) |
| 2 | Width of the raw material | 1250mm |
| 3 | Rows of rollers | 15 rows & 16 rows |
| 4 | Way of drive | chain drive,Gearbox drive(optional) |
| 5 | Main servo | 7.5kw |
| 6 | Hydraulic station power | 11kw |
| 7 | Thickness of raw material | 0.25-0.8mm |
| 8 | Productivity | 8-15m/min |
| 9 | Diameter of shaft | ￠75mm |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Frame | 350H steel |
| 12 | Middle plate | 16mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Product Tags:
|
|
Glazed Tile Roof 0.25 Double Layer Roll Forming Machine Gearbox Drive Plc Control Images
|
