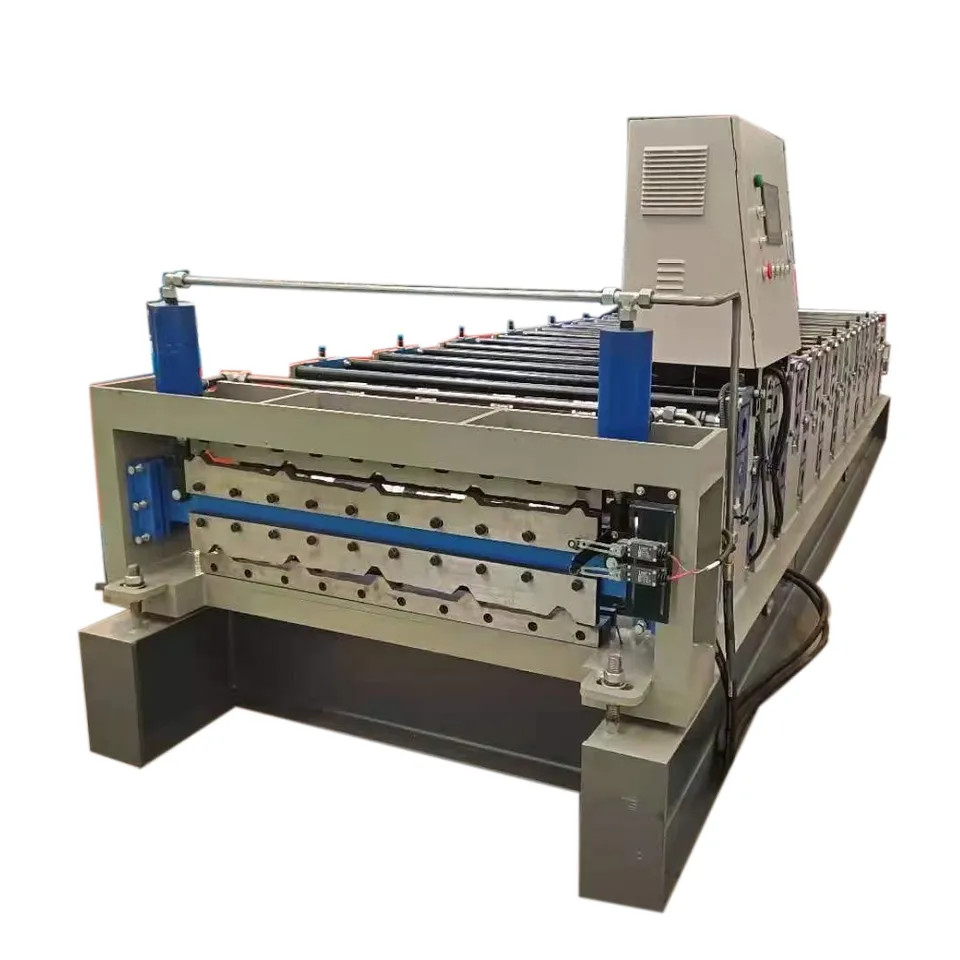

Double Layer Building Material Trapezoidal Roll Forming Machine 15m/Min

Brand Name : FMS

Model Number : Double Layer

Certification : ISO CE

Place of Origin : CHINA MAINLAND

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Working Days

Packaging Details : 20' FLC

Product Name : Double Layer Trapezoidal Roof Tile Building Material Roll Forming Machine Manufacturer

Dimension(L*W*H) : 6.5*1.2*1.2M

Raw Material : Galvalume, Galvanized

Working Speed : 8-15 m/min

Rolling thinckness : 0.2-0.8mm

Shaft material : 45# steel

Motor power : 7.5 kw

Pow supply : 380V, 60Hz, 3Ph

width of raw material : 1000mm

Contact Now

Double Layer Trapezoidal Roof Tile Building Material Roll Forming Machine Manufacturer

Double Layer Trapezoidal Roof Tile Building Material Roll Forming Machine Manufacturer.The Roll Forming Machine is composed of feeding, forming, and post-forming cutting. The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.

Specification

No	Item	Data
1	Coil Width	according to drawings
2	Diameter of shaft	70mm
3	Forming Speed	8-12m/min
4	Middle plate	16mm
5	Material of shaft	45#steel with tempering
6	forming thickness	0.2mm-0.6mm
7	material of rollers	45#steel
8	Cutting type	hydraulic -cutting
9	Main power	4kw+3kw
10	Main frame	300H steel
11	Control system	PLC
12	Brand of electrical parts	Delta
13	Manual decoiler	5 tons
14	Power	3 Phase,380 Voltage,50Hz
15	Dimensions(LWH)	About 6.51.21.2M
16	Weight	about 3 tons

Advantage

The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Double Layer Building Material Trapezoidal Roll Forming Machine 15m/Min

Product Tags:

Galvanized trapezoidal roll forming machine

trapezoidal roll forming machine 15m/min

Double Layer Building Material Trapezoidal Roll Forming Machine 15m/Min Images
