V Frame Racking Beam Pallet Rack Roll Forming Machine PLC Control

Brand Name : FMS

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 20 sets per month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by plastic.

Product Name : Warehouse Shelf V-Frame Racking Beam Pallet Rack Roll Forming Machine

HigzhControl Type : PLC Control System-accuracy

Production Capacity : 15-30m/Min

Rolling thincknes : 0.6 mm ~ 1.5 mm

Material width : 135/ 170/ 180/ 215 mm

Control system : PLC computer control with inverter

Power : 25KW

Frame : 400H stee

Dimension(L*W*H) : 4.8m*0.8m*1.2m

Weight : 3500 kg

Voltage : 380 v/customized

Contact Now

Warehouse Shelf V-Frame Racking Beam Pallet Rack Roll Forming Machine

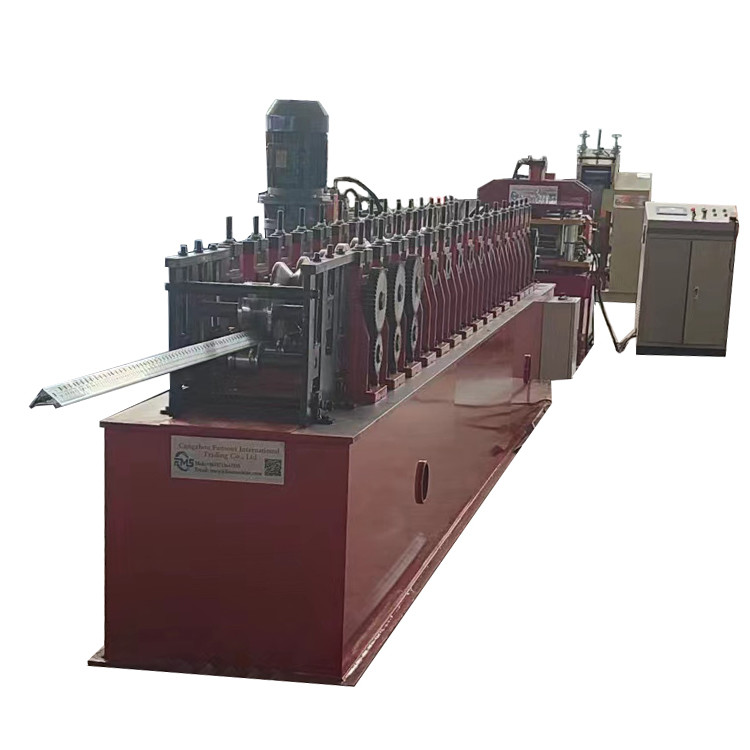

The picture shows the whole process of cold roll forming machine :
The machine is fully automatic and it is easy to operate with a friendly HMI panel. It consists of one decoiler, sheet guiding
equipment, roll forming section, PLC control system, Hydraulic cutting, collection table.

specifications

Type	Steel Frame & Purlin Machine
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Production Capacity	15-30 m/min
Place of Origin	China
Voltage	380 v/customized
Power	25KW
Dimension(LWH)	4.8m0.8m1.2m
Weight	3500kg
Warranty	1 Year
Key Selling Points	Low Noise Level
Dimension(LWH)	4.8m0.8m1.2m
Rolling thincknes	0.6 mm ~ 1.5 mm
Roller material	Cr12mov
Shaft material	High grade 45 # steel
Weight	3500 kg
Profile cutting	Hydraulic cylinder
Control system	PLC HMI automatic programmable
Material width	135/ 170/ 180/ 215 mm

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
