Customized Automatic Double Head Steel Coil Hydraulic Decoiler 5T 10T

Name: Customized Automatic Double Head Steel Coil Hydraulic Decoiler 5T 10T
Brand: CANGZHOU WILLING
Price: 1 USD

Buy cheap Customized Automatic Double Head Steel Coil Hydraulic Decoiler 5T 10T product

Brand Name : CANGZHOU WILLING

Model Number : 5T- Auto Hydraulic Decoiler With Car

Certification : ISO CE

Place of Origin : CHINA MAINLAND

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, Western Union, L/C, D/A, D/P

Supply Ability : 100 Sets Per Month

Delivery Time : 20 Working Days

Packaging Details : 20 ' FLC

Product Name : Customized Automatic Double Head Steel Coil Hydraulic 5T 10T Decoiler

Suitable Material : Strip steel, GI, PPGI, AL

Dimension(L*W*H) : about 1.2m *0.8m X 1.5 mm

Processing Width : 600-1500mm

Working Speed : 15-30 m/min

Loading Weigth : 1500 kg

Power : 5KW

Thickness of material : 0.3-2.0 mm

Material of roller : 45# forged steel

Voltage : 380 V/415 V

Automatic Grade : Automatic

Contact Now

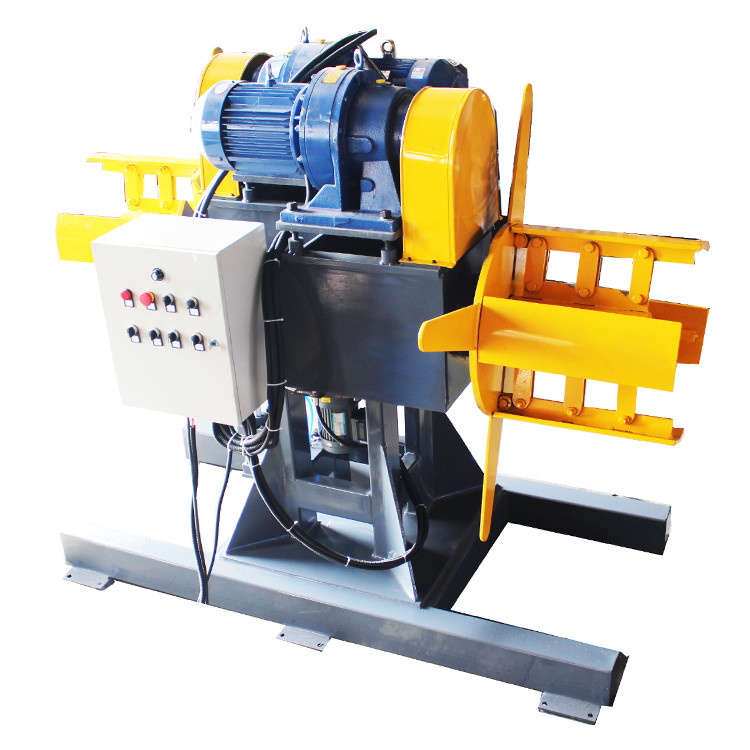

Customized Automatic Double Head Steel Coil Hydraulic 5T 10T Decoiler

Customized Automatic Double Head Steel Coil Hydraulic 5T 10T Decoiler production line . The fuction of hydraulic decoiler machine is save labor and make the work more efficiency. Usually most of decoilers can be only suitable for 1250mm width. We adopt 5.5KW electric motor to rotate the shaft, it can decoil automatically, it speed up the whole production line.

Specification

Material Thickness	0.3-2.0 mm
Working Speed	15-30m/min
Roller Stations	12 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Electrical Hydraulic Station Power	5KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Advantages

1.The load-bearing main shaft adopts high-strength and fatigue-resistant rear wall seamless steel,which is formed by turning and has strong strength and great bearing capacity.

2.The volume is hydraulically controlled, convenient, fast and stable.

3.Electrical control, high precision, good automation, inverter control, speed can be adjusted.

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
