Product Description:
1. Feeding: guide shaft + guide wheel
2. Leveling: three up and four down + two leads.
Material: 45#
Processing technology: rough turning + high frequency heat treatment hrc50-55 + cylindrical fine grinding + surface polishing and hard chromium plating
3. Main molding: 18 component type (one of which is waist height molding 87-95 degree arbitrary roll adjustment group), equipped with 13 groups of CZ exchange modules, which can be switched by rotating 180 degrees, and the specification can be changed through the electric button.
4. Pressing bar: straight bar
5. Alignment: Ten roll CZ special two axis alignment + four roll two axis alignment, a total of two alignment units
6. Guiding: equipped with transmission, driven by upper and lower shaft gears
7. Punching: punching single hole + punching double holes after forming, with round holes Φ 14mm and Φ 16mm and oval hole 28 ×16mm and 28 × 14mm optional.
8. Cutting: endless cutting system after forming, cutting does not need to change the knife, and manual type change is required.
Cutter material: Cr12
Technical Parameters:
| Technical Parameter | Value |
| Product Name | CZ Purlin Roll Forming Machine |
| Roller Material | 45# Steel |
| Rollers | 18 Stations |
| Size | 7000*1250*1700mm |
| Weight | 10T |
| Voltage | 380V/50HZ/3Phase |
| Material | Galvanized Steel |
| Control System | PLC |
| Cutting Length | Any Length |
| Transmission | Chain Drive |
This wholesale china import metal cz purline machine is part of r building material machinery.
Applications:

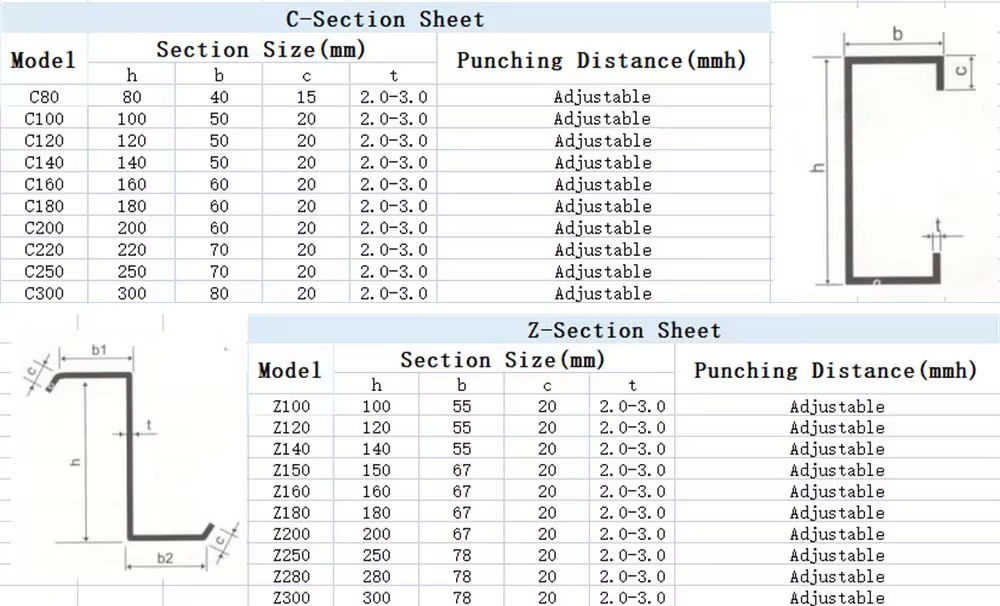

1. Product specification:
1). C width (80-300mm) and Z width (120-300mm) can be changed arbitrarily Replace;
2).Waist height (40-80mm) can be changed arbitrarily;
3). Small side (10-25mm);
4). Plate thickness t(1.5-3.0mm) adjustable
2. Discharging speed: high speed 25m / min (according to the number of holes punched)
3. Applicable material: Q195, Q235 hot rolled strip steel or hot rolled galvanized strip steel (1.5-3.0mm)
Packing and Shipping:
Product Packaging:
The CZ Purlin Roll Forming Machine will be packed in a strong wooden crate to ensure safe transport and delivery. The machine will be securely fastened and protected with foam padding to prevent any damage during shipping.
Shipping:
The CZ Purlin Roll Forming Machine will be shipped via sea or air freight, depending on the customer's preference and location. Shipping costs will be calculated based on the destination and weight of the machine.
FAQ:
Q: Are you manufacturer?
A: Yes, we are manufacturer .
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou airport: By air From Guangzhou to Beijing airport; By high speed train From Beijing Nan to Cangzhou Xi (1hour),then we can pick up you.
